Ultrasonic. Dual-Mode. Nondestructive Precision.

The Phase II PHT-6000 Series is a state-of-the-art portable hardness tester that integrates Ultrasonic Contact Impedance (UCI) and Leeb rebound testing in one rugged device. This dual-mode system allows technicians to test thin, curved, or hardened materials without damage — making it ideal for aerospace, medical, and industrial components.

Equipped with a high-contrast color LCD screen, onboard memory, USB data output, and multilingual support, it offers precise results across Rockwell, Brinell, Vickers, Leeb, and Shore scales. Choose from manual or motorized UCI probes, plus any standard Phase II impact device.

Testavor is an official Canadian partner of Phase II. Units ship direct with all duties prepaid. Backed by a full 5-year manufacturer warranty and optional NIST traceable calibration services.

Configure Your PHT-6000

Choose your probe type and load configuration. All units include the PHT-6000 base, charger, USB cable, software, and carry case.

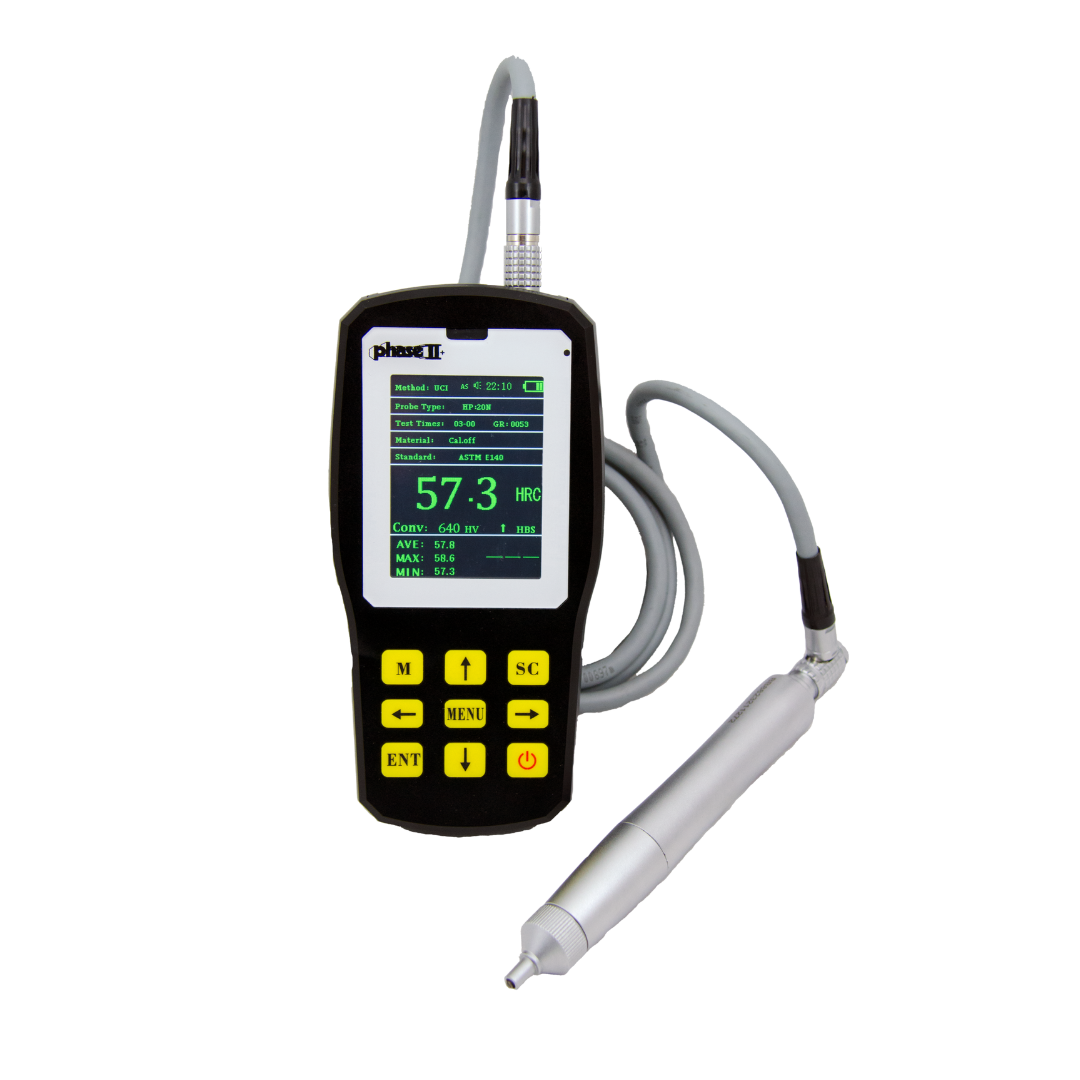

Manual Probes: Best for flexible field use. Available in 1kg, 2kg, 5kg, 10kg, or Long 1kg versions.

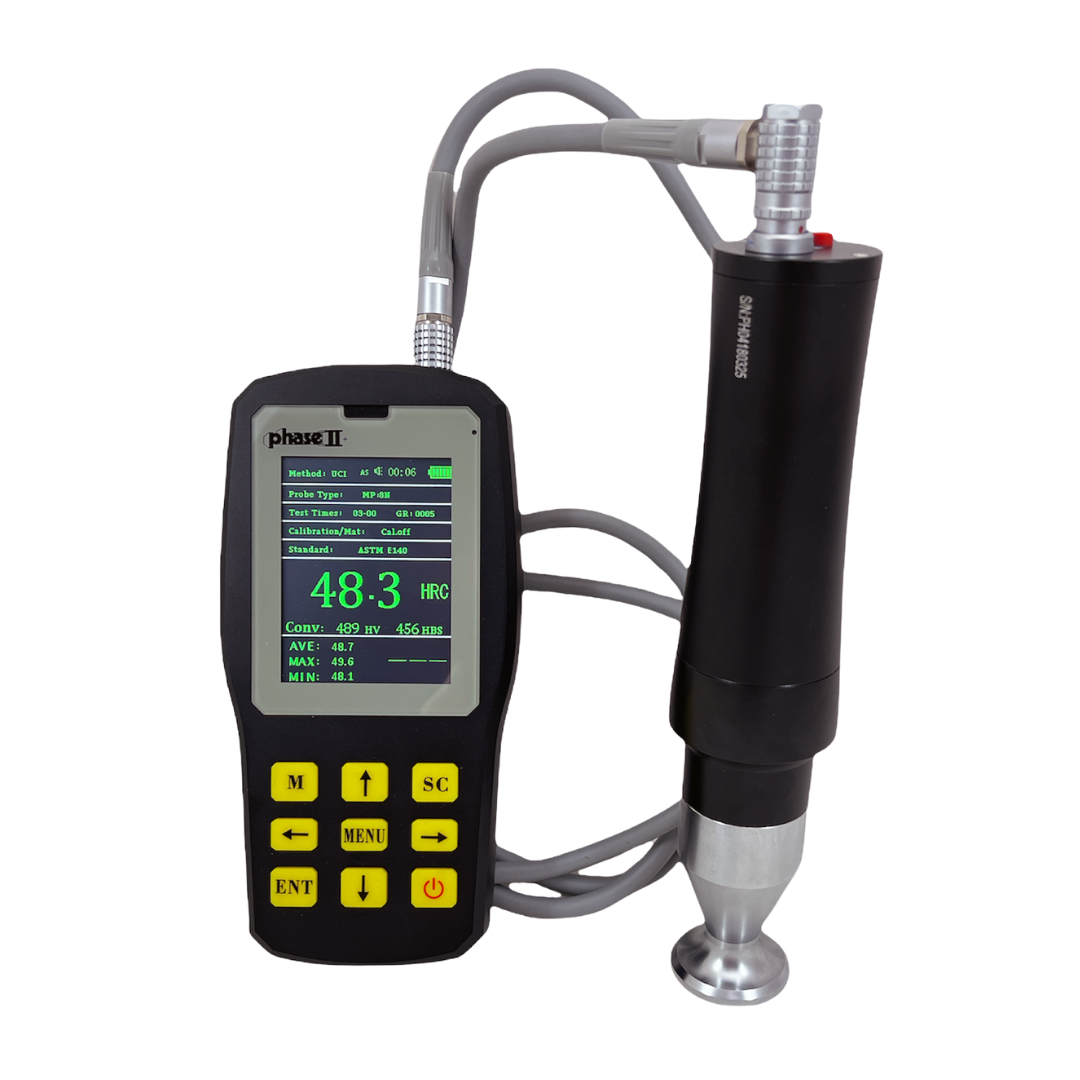

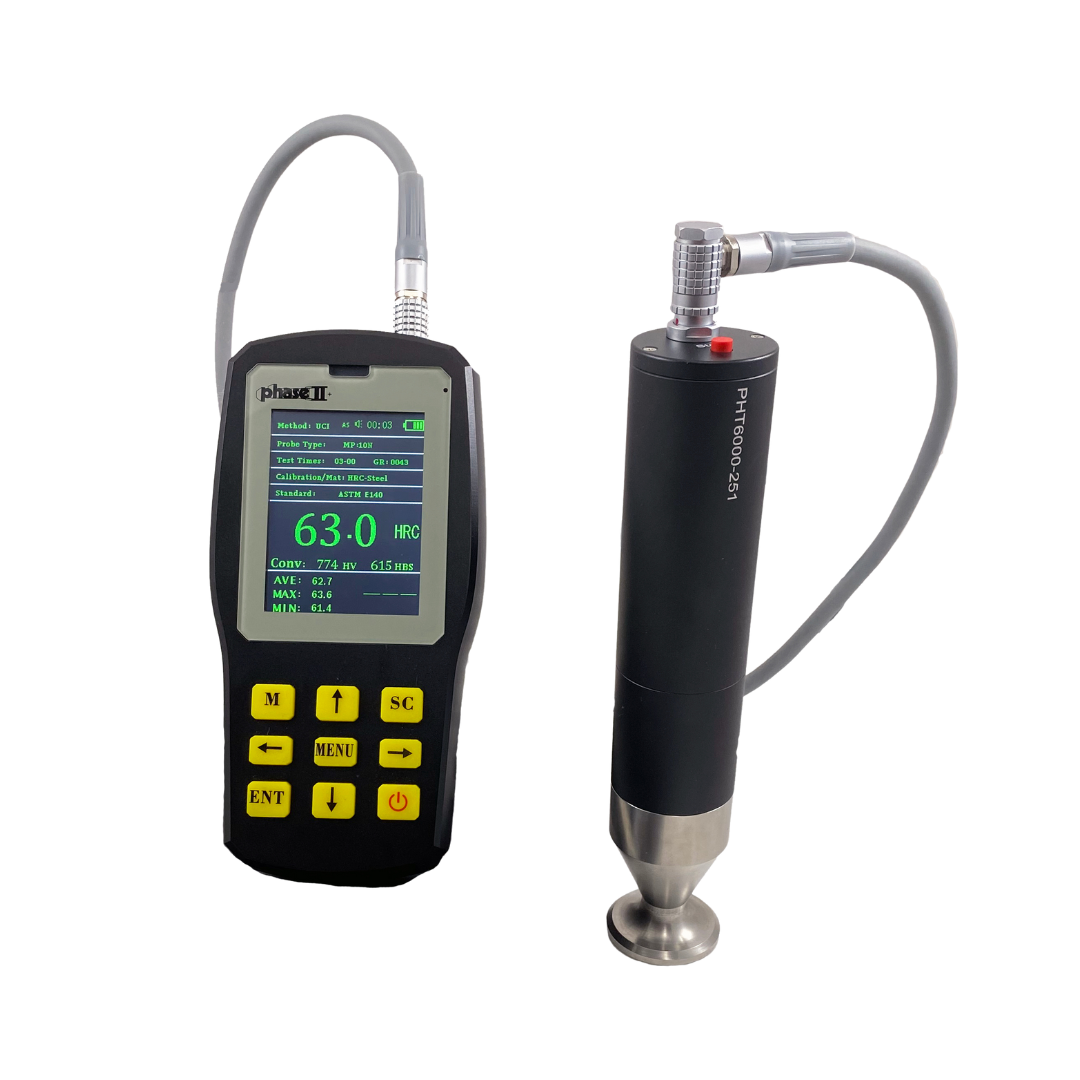

Motorized Probes: Provide consistent, automated load — ideal for repetitive or precision testing. Offered in 0.30kg, 0.80kg, and 1.00kg.

Key Features

Dual-mode portable hardness tester: UCI + Leeb rebound
Test as thin as 0.08" (2mm); no upper limit
Direct readings in HRC, HRB, HB, HV, Leeb, Shore, tensile
USB output and software included
2000-group memory, 20 calibration sets
Color LCD with brightness control and multilingual UI
Rechargeable lithium battery (up to 8 hours runtime)
Complies with ASTM A956 (Leeb) and ASTM A1038 (UCI)

Specifications

Hardness Range: HRC 20–70, HRB 55–100, HB 100–739, HV 100–2970
Display: Color LCD screen, adjustable brightness
Memory: 2000 measurement groups, 20 calibration sets
Output: USB with DataPro software included
Battery: 4.2V lithium (4800mAh), rechargeable
Runtime: Approx. 8 hours (6 hours with backlight off)
Unit Dimensions: 160 × 80 × 30 mm
Weight: 2 lbs with probe; 12 lbs shipping weight

What’s Included

PHT-6000 Base Unit
Manual UCI Probe (1kg, 2kg, 5kg, or 10kg)
USB Cable and Software
Charger and Lithium Battery
Calibration Certificate
Protective Carrying Case
User Manual

Optional Accessories

Motorized UCI Probes: 0.30kgf, 0.80kgf, 1kgf

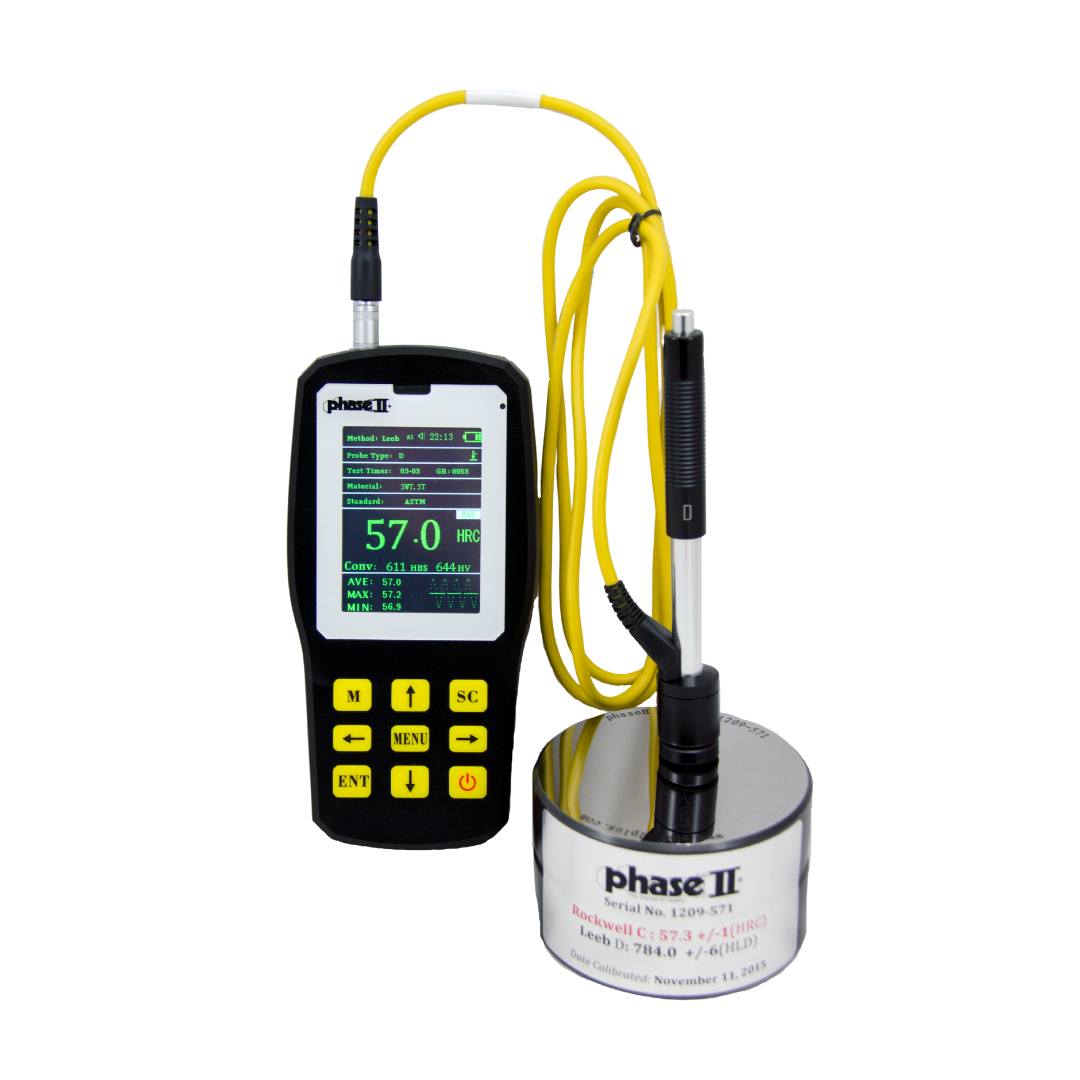

Impact Devices: D, DL, D+15, G, DC, C
Support Rings & Adapters: V-groove, flat, deep-hole
Push Handle & Precision Stand
NIST-Certified Calibration Blocks

Frequently Asked Questions

What makes this different from other testers?
The PHT-6000 combines ultrasonic and impact testing in one unit, giving you flexibility to test nearly any metal in any shape or thickness.
Does it support curved or irregular surfaces?
Yes — V-groove and deep-hole accessories are available for both UCI and Leeb modes.
What ASTM standards does it meet?
It complies with ASTM A1038 (UCI) and ASTM A956 (Leeb), ensuring traceable, lab-grade performance.
Can I upgrade the probe after purchase?
Absolutely — you can add motorized probes or alternate impact devices anytime.

All Phase II testers sold by Testavor include a 5-year manufacturer warranty and are fully supported for Canadian buyers.
